Why Data Annotation Is Critical to Robotics AI Performance

What do you think vouches for AI’s big wins? Accurately annotated massive datasets. Computer vision systems, LLM models, and video generation tools can be successfully launched, thanks to the vast library of relevant training datasets. But when it comes to robotics, the breakthrough still feels like a distant dream, as there’s no treasure trove of robotics-specific data.

And, even if businesses manage to obtain such data, annotating it precisely is an uphill task. That’s because a wrong movie recommendation is annoying but not dangerous. On the other hand, mislabeling a pedestrian as a lamppost can be dreadfully fatal. Thus comes the need for robotics data annotation!

It is the difference between a robot that can navigate the messy, chaotic real world and one that freezes at the first unexpected shadow. And as the global AI in robotics market size is expected to reach USD 124.77 billion by 2030, growing at a CAGR of 38.5%, data annotation becomes even more important.

What Is Robotics Data Annotation?

Robotics data annotation is the process of labeling multi-modal sensor data to train embodied AI systems, i.e., machines that interact physically with their environment. This is not like the usual computer vision task. A robot perceives its environment not just in pixels or echoes, but as objects with physical properties, spatial relationships, and temporal trajectories.

Unlike standard image tagging, robotics annotation teaches the machine how the world behaves. To achieve this level of environmental fluency, annotators must process vastly different streams of sensory input:

• Visual Data: This is the standard RGB camera data. Here, the annotation moves beyond bounding boxes. It requires instance segmentation, such as separating every tomato in a cluttered vine, and panoptic segmentation, which merges “stuff” (e.g., sky) with “things” (e.g., trees).
• LiDAR Data: Light Detection and Ranging sensors generate 3D point clouds that represent the spatial geometry of environments. Annotators must label millions of 3D points to differentiate a leaf that a branch trimmer may pass through from a power line that it must avoid at all costs.
• Sensor Fusion: Modern robots combine thermal, radar, and visual data. For example, labeling a pedestrian in RGB and cross-referencing their thermal signature to verify they are a living being versus a mannequin.
• Motion and Trajectory Data: The bots must know how to track objects in 4D space and time. Thus, data annotation is done across 4D video frames. It involves labeling optical flow, literally drawing the vectors of how a car is moving across an intersection.
• Spatial Mapping: Labeling geometric primitives and planes to help the robot understand free space versus occupied space for Simultaneous Localization and Mapping.

Without these layers, a robot is essentially driving with its eyes closed, trusting that the world is flat and static. While these technical layers form the “eyes” of the robot, it is crucial to understand why the “brain” processing this data cannot be the same brain we use for our smartphones or search engines.

What Is the Difference Between Consumer AI and Robotics AI?

Why do billion-parameter vision models, trained on billions of internet images, fail catastrophically when placed inside a $200,000 manufacturing arm? The answer lies in the divergence of objectives. Consumer AI is built to suggest; Robotics AI is built to act. Here’s why off-the-shelf models are unfit for physical environments.

Consumer AI vs. Robotics AI

In short, consumer AI lives in a world of probability, while robotics AI lives in a world of physics. A model trained on Flickr photos has never experienced gravity, torque, or the consequence of a collision. This is why generic pre-trained weights serve as a poor foundation for embodied tasks. They understand pixels, but they do not understand their presence.

Recognizing this performance gap shifts the conversation from “How much data do we have?” to “How well is that data annotated?”. The granularity of that label is the difference between a graceful maneuver and a catastrophic failure.

How Does Granular Data Annotation Impact Robotic AI Performance?

If a robot’s brain is the AI model, then annotated data is its formal education. Skipping the details in this education creates a machine that is technically graduated but functionally incompetent. Here is how pixel-level and temporal-level decisions cascade into operational reality.

1. Safety and Liability

In industrial automation, safety is not a feature but a liability of firewall. Granular annotation defines the safe zone where humans work and the danger zone where the robotic arm moves at high velocity. If a labeler misses a two-pixel boundary of a human hand in a LiDAR frame, the robot perceives that hand as background noise.

This isn’t just a misclassification; it is an engineering failure that leads to lockouts, workplace injuries, and lawsuits. Pixel-perfect segmentation is the prerequisite for high-speed separation, the ability for robots to maintain high speed when far from humans, and for robots to instantly decelerate when proximity is detected.

2. Operational Efficiency

Have you ever watched a robot hesitate or move “jerkily”? This stuttering motion is often the physical manifestation of confused inference. When temporal annotation is sloppy (e.g., inconsistent labeling of an object across sequential frames), the robot cannot predict the trajectory. It second-guesses itself: Is that a stationary pole or a slowly moving person?

This results in frequent deceleration and re-planning. High-frequency, temporally consistent annotation enables the robot to trust its perception, enabling fluid motion that reduces cycle times by microseconds, compounding millions of dollars in annual savings.

3. Generalization

A robot trained only in a perfectly lit, beige-walled lab will suffer a catastrophic system failure in the real world. Granular annotation exposes the model to adversarial conditions during training. The model learns the object’s invariant features with the help of meticulously labeled data that includes lens flare, occlusions (a box blocking a sensor), and adversarial weather (rain droplets on LiDAR). The robot learns that a stop sign is still a stop sign, even if it is covered in snow or bent at an angle.

4. Dexterity

The holy grail of robotics is the human-like hand. This requires surgical precision in semantic segmentation. Consider a food-packing robot: gripping a rock requires crushing force; gripping a ripe tomato requires zero pressure. If the annotation does not delineate the exact boundary between the tomato stem and the fruit body, the robot cannot compute the optimal grip point. It will either crush the fruit or fail to pick it. The annotation here specifies the physics of interaction, i.e., friction, suction, and torque.

Given the immense impact of high-quality labels, one must ask: if this is the solution, why do so many robotics programs stall after the prototype phase?

Why Do Robotics AI Programs Plateau?

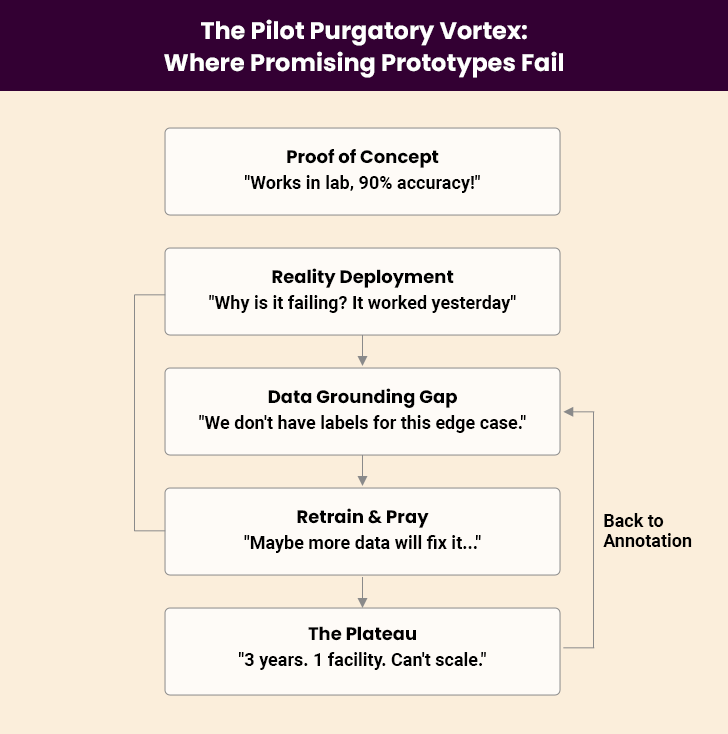

The Pilot Purgatory is real. Many robotics companies demonstrate a stunning proof-of-concept, only to spend the next three years unable to scale. This plateau is rarely an algorithm problem; it is a data grounding problem.

I. The Simulation Trap

Simulation is a powerful tool. It can generate one million labeled images in an afternoon. However, models trained exclusively on synthetic data suffer from the reality gap. Simulated physics is an approximation. It lacks the microscopic irregularities of the real world, such as dust on a lens, a slightly bent conveyor belt, or the way light refracts through a plastic wrapper. Synthetic data provides breadth, but only data annotation for robotics AI on real-world sensor data provides the depth and grounding required to bridge that gap.

II. Long-Tail Distribution

Engineers are excellent at coding for the expected. They cannot code for the infinite variability of the unexpected, i.e., the “long tail.” What happens when a delivery robot encounters a man in a horse costume? Or a stroller on the sidewalk? There’s no other solution, only training. Robotics programs plateau when they run out of annotated long-tail data. The model has seen 10,000 delivery boxes, but zero skateboards. Consequently, it treats the skateboard as an anomaly and freezes.

III. Multi-Modal Alignment

Modern robots don’t rely on one sense; they rely on redundant senses. However, annotating multi-modal data is exponentially harder than annotating a single image. If a LiDAR point and an RGB pixel both represent the corner of a pallet, they must be aligned perfectly in the annotation suite. If they are misaligned, the robot faces sensory dissonance where the visual cortex says “go,” but the spatial cortex says “stop.” Resolving this alignment requires specialized data annotation services in robotics that understand calibration matrices, not just drawing tools.

IV. The Scale Paradox

Amazon has more than USD 124.77 billionone million robots across its network of operations. This figure isn’t abstract. It represents the largest fleet of commercial robots deployed worldwide. Yet Amazon didn’t achieve this scale by outsourcing perception to off-the-shelf models.

They built it because they solved the data grounding problem: annotating billions of frames of warehouse-specific data. This includes pallets wrapped in black stretch film (which LiDAR absorbs), tote bins under variable LED flicker, and human associates moving in unpredictable paths.

These plateaus are symptomatic of greater structural difficulties inherent to the physical world. To overcome them, we must first resolve the unique challenges of the robotic annotation process itself.

What Are the Unique Challenges of Annotating Robotics Data?

Annotating a JPEG for an ecommerce search engine is a solved problem. Annotating a 4D LiDAR stream for a self-driving forklift is a frontier for scientific research. The challenges are not just about volume; they are about the nature of the data itself.

1. Multi-Sensor Synchronization And Temporal Continuity

A camera captures images at 30 frames per second (FPS); LiDAR captures data at 10 FPS; radar captures at a different rate entirely. Annotators are often given desynchronized data streams. Using a label from video Frame 30 while the LiDAR point cloud is still rolling from Frame 10 creates a temporal misalignment. The challenge is maintaining temporal continuity or ensuring that the identity “Box_123” remains the same across different sensors and timestamps.

2. 3D and Point Cloud Labeling Complexities

Labeling in 2D is dragging a box. Labeling in 3D is sculpting in the dark. Annotators must rotate a cubic space, identify partially occluded points behind an object, and decide whether a cluster of stray LiDAR points is noise or a critical obstacle (e.g., a small rock). The cognitive load is immense, requiring annotators to think in Cartesian coordinates rather than pixels.

3. Edge-Case Scarcity

It is impossible to get 10,000 instances of a tire blowout on a highway or a deer jumping into a greenhouse. These events are rare. Collecting them organically is slow; synthesizing them is risky. The challenge is to develop a pipeline that efficiently captures, curates, and labels these sparse-but-critical events.

4. Real-Time Learning Requirements

While the final model may run on the edge, the annotation pipeline must support continuous learning. As robots deploy, they face the domain shift. For example, a warehouse changing lighting from fluorescent to LED. The challenge is re-annotating this new data and re-training the model rapidly, often within 24-hour SLAs.

5. Scale and Velocity of Data Generation

A single autonomous vehicle generates multiple terabytes of data per hour. A fleet of warehouse robots generates a petabyte-scale data lake weekly. Filtering this firehose for “relevant” data and then annotating it at scale requires infrastructure that most startups do not possess.

Given these immense technical hurdles, it is clear that more manpower is not the solution. But a smarter strategy is. So, how should companies architect their annotation operations to survive this complexity?

How To Proceed with Data Annotation for Robotics AI?

Building a world-class perception system requires a pragmatic approach to data operations. It is a balance of speed, security, and specialization. Here is how leading firms navigate the landscape.

A. What Are the Core Principles of Compliance-First Web Scraping?

The decision to build internal teams or partner with specialized annotation firms is a strategic fulcrum. Data annotation for robotics involving proprietary hardware, such as a novel sensor array, or defense applications often demand in-house handling to protect IP.

However, for high-volume, commodity tasks such as labeling cars and pedestrians, outsourcing to specialized vendors offers scalability. Ultimately, it comes down to the quality of the outcomes and the project’s cost. So, it is advised to do a cost vs. quality breakdown of outsourcing data annotation and then take the final call.

B. The Importance of Human-in-the-Loop Approach

As models become more capable, the role of the human is shifting from laborer to instructor. However, not all instructors are equal. The new luxury good in AI in robotic data annotation is domain-specific expertise.

For instance, a MedTech surgical robot cannot be validated by a generalist click-worker; it requires a surgical resident to verify the annotation of a suture needle. Similarly, agri-robots benefit from veterinarians who understand animal anatomy to label stress points on livestock. This domain expert-in-the-loop model drastically reduces noise in the training data.

C. Ensuring Quality of Annotated Robotics Data

The industry standard, Intersection over Union (IoU), measures pixel overlap. But IoU does not measure functions. A label can have a 95% IoU on a pallet, but if the missing 5% is the exact point where the fork needs to insert, the robot fails. Progressive QA moves toward task-based success metrics. The question is not whether the label is big enough, but whether the robot using this label will successfully pick the object. This functional view of quality closes to the simulation-to-reality gap.

What Are the Hidden Liabilities of Poor Data Annotation?

A robot isn’t blamed for the mistakes it makes; instead, the companies that build that robot often have to suffer. Poor annotation creates a paper trail of liability that extends far beyond the engineering department.

I. Regulatory Scrutiny

Regulators are catching up. The EU AI Act classifies robotics used in critical infrastructure as high-risk. Compliance requires demonstrating data governance, including annotation lineage. The company must prove who labeled what, when, and under what guidelines.

If a robot injures a worker and the plaintiff’s attorney requests the training data, discovering that the safety-critical zones were labeled by an untrained intern with a mouse creates insurmountable legal exposure. Annotation here becomes a regulatory artifact.

II. Bias in Embodiment

Bias in generative AI creates stereotypes; bias in robotics creates physical exclusion. If a pedestrian-detection algorithm is trained predominantly on LiDAR data from Northern European cities, it may fail to detect pedestrians wearing loose-fitting clothing common in South Asian or Middle Eastern markets. The robot not only failed to see them but also physically navigated through their space, creating dangerous confrontations. Homogeneous training data creates robots that are blind to global diversity.

III. Reputational Risk

It is a “viral failure” era today. A video of a robotic arm repeatedly punching boxes off a conveyor belt, or a delivery robot getting confused by a simple puddle, garners millions of views. The nuance of “it was a sensor fusion glitch due to poor temporal annotation” is lost. The public narrative becomes, “Robot still can’t do the job.” These perceptual gaps, visible to everyone, erode consumer trust and investor confidence overnight.

Closing Lines

There’s a capital shift from digital AI to embodied AI. In this shift, the rules of data have changed. It is no longer possible to scrape the internet and hope for generalization. The physical world must be built, brick by labeled brick, for the machines. Robotics data annotation is the discipline of translating the chaos of physics into the language of logic. It dictates whether a robot is safe or dangerous, efficient or clumsy, globally ready, or locally obsolete.

The message is clear: the model is a passenger, and annotated data is the engine. Investing in the engine breaks the plateau. Neglect it, and a promising prototype fails to reach its full potential.
